Hardie™ Plank MetalTrim™ ExtC. 20 mm LM5

Click here to order samples and download the full Hardie® Plank brochure.

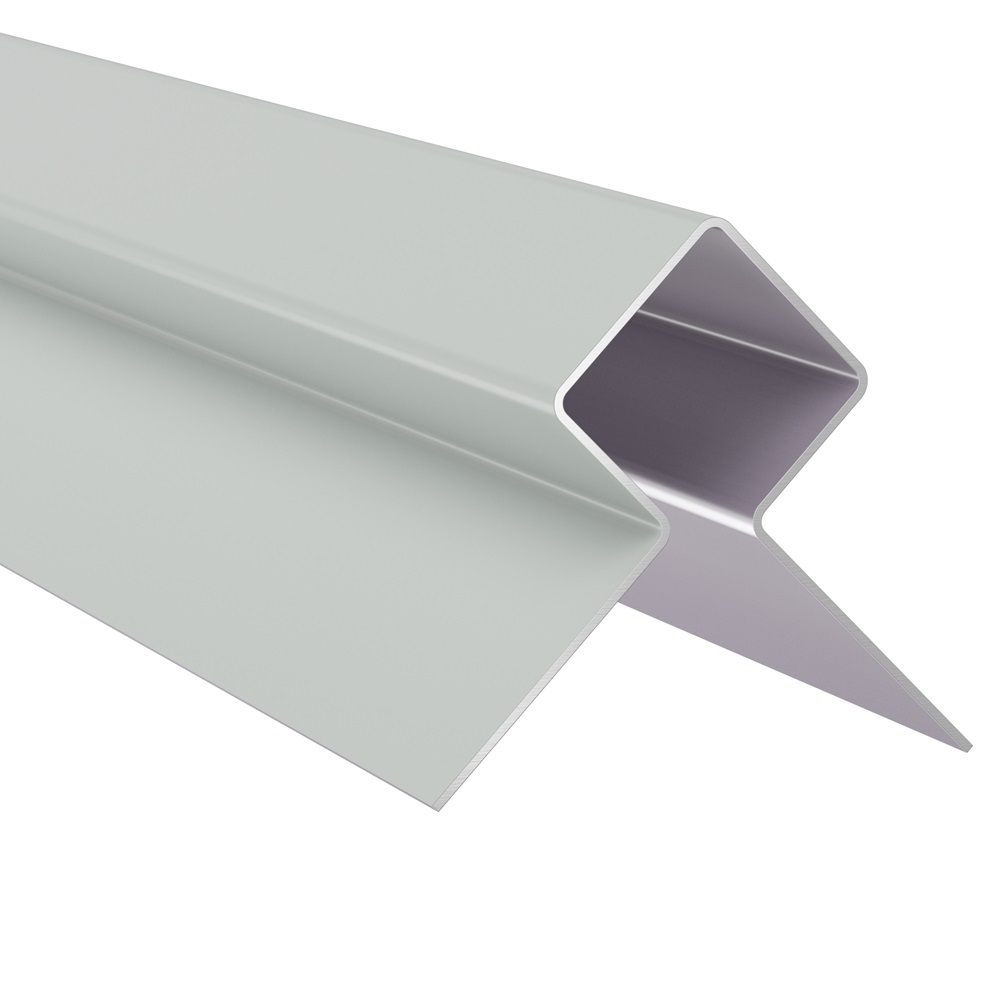

Create a defined edge where two elevations of Light Mist Hardie® Plank cladding meet with the Hardie™ Plank MetalTrim External Corner Profile. The trim covers the exposed ends of the boards at an outward-facing corner, producing a straight junction while helping to protect the edges of the installed cladding.

Its colour-matched LM5 finish coordinates with Light Mist planks, allowing the corner to sit neatly within a consistent façade design. Alternatively, it can be combined with a contrasting board colour where a more noticeable framed effect is required.

The 20mm profile is intended for use with Hardie® Plank lap cladding and is supplied in a 3m length for cutting to the required height on site.

Where is an external corner trim used?

External corner profiles are fitted around outward-projecting angles, including:

• Main building corners
• Extensions and projecting sections
• Boxed columns
• Dormers and entrance features
• Other external changes in façade direction

Specification:

• Profile type: External corner
• Compatible system: Hardie® Plank
• Profile size: 20mm
• Colour code: LM5
• Colour: Light Mist
• Length: 3m
• Finish: Colour matched

This profile is designed specifically for external angles. An internal corner profile will be required where two cladded surfaces meet within a recessed angle.
